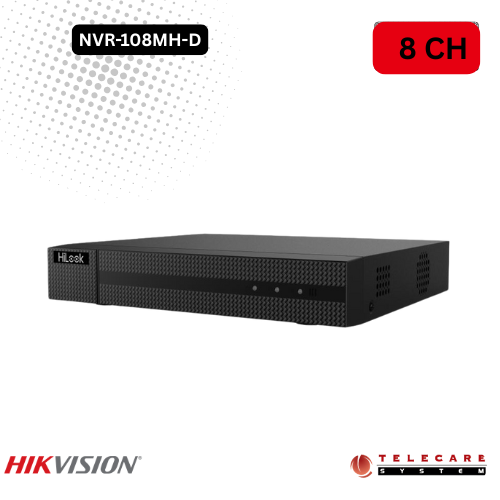

Hikvision NVR-108MH-D 8-Channel Mini 1U NVR
Hikvision NVR-108MH-D is a compact 8-channel 1U NVR designed for small-scale surveillance systems. Supporting H.265+ compression and up to 6MP resolution, it delivers efficient recording while saving 80% storage space. With HDMI/VGA outputs, 4K playback, and plug-and-play PoE, this NVR is ideal for homes, shops, and offices. Its 1U slim design saves rack space, and Hik-Connect enables remote mobile access. Perfect for 4-8 camera setups, it balances performance, affordability, and space efficiency—making it a top choice for entry-level to mid-range security needs.
Hikvision NVR-108MH-D Technical Specifications
-
Model: NVR-108MH-D
-
Channels: 8-channel IP camera inputs (Up to 6MP per channel)
-
Recording Resolution: Up to 6MP (3072×2048) @ 15fps
-
Video Compression: H.265+/H.265/H.264+
-
Live View: 8-screen display (Supports 4K HDMI output)
-
Storage: 1x SATA HDD bay (Up to 10TB, supports SSD)
-
PoE Ports: 4x PoE (802.3af, 15.4W/port)
-
Network: 1x Gigabit Ethernet port
-
Alarms: 4x alarm inputs, 2x alarm outputs
-
Playback: 4K HDMI + VGA outputs (Simultaneous)
-
Bandwidth: 80Mbps incoming
-
Mobile Access: Hik-Connect (iOS/Android)
-
Operating Temp: -10°C to +55°C (14°F to 131°F)
-
Power Supply: 12V DC adapter
-
Dimensions: 1U rack-mountable (280×210×44mm)
-
Certifications: CE, FCC, RoHS
Hikvision NVR-108MH-D Key Features
✔ 6MP Recording – 50% more detail than standard 4MP systems.
✔ H.265+ Efficiency – 80% lower storage vs. H.264.
✔ Built-in PoE (4 Ports) – Single-cable power + data for cameras.
✔ 1U Compact Design – Saves rack/desk space.
✔ Hik-Connect Remote Viewing – Monitor anywhere via mobile.
Ideal Applications
-
Small businesses (retail shops, offices)
-
Home security (4-8 camera setups)
-
Boutique hotels (lobby/entrance monitoring)
-
Temporary installations (construction sites)
Why Choose This NVR?
Space-Saving – Fits in tight server racks or desks.
Cost-Effective – Balances price and performance.
Easy Setup – Plug-and-play PoE for quick deployment.
Comparison to Larger NVRs
| Feature | NVR-108MH-D | Standard 8CH NVR |
|---|---|---|
| Size | 1U (44mm) | 2U (88mm) |
| PoE Ports | 4 | 8 |
| Max Resolution | 6MP | 8MP |
| Best For | Space-limited setups | Larger systems |
Ideal for users needing compact, no-fuss recording without sacrificing quality.
Installation Tip
Pair with Hikvision AcuSense cameras (e.g., DS-2CD2347G2-LU) for smart motion detection.
A sleek, efficient NVR for small to medium security systems.
