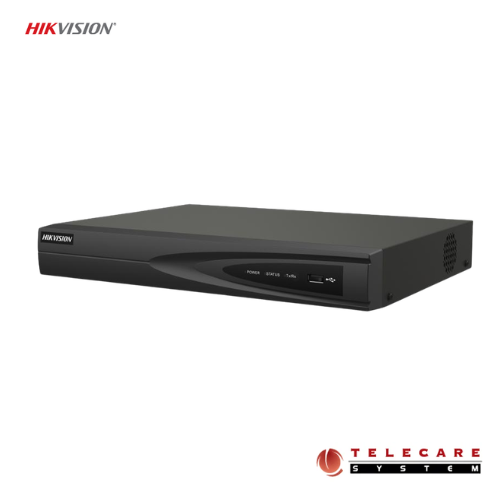

Hikvision DS-7616NI-Q1 16 Channel 4K Network Video Recorder (NVR)
Hikvision DS-7616NI-Q1 is a reliable 16-channel 4K Network Video Recorder (NVR) designed for small to medium-sized surveillance systems. It supports up to 16 IP cameras with resolutions up to 8MP, delivering crystal-clear video recording. Featuring H.265+ compression, 4K HDMI output, 160 Mbps incoming bandwidth, and a user-friendly interface, this NVR is an ideal solution for offices, retail stores, homes, schools, and commercial security installations.
Hikvision DS-7616NI-Q1 Specifications
| Specification | Details |
|---|---|
| Model | Hikvision DS-7616NI-Q1 |
| Device Type | Network Video Recorder (NVR) |
| IP Camera Input | 16 Channels |
| Maximum Camera Resolution | 8MP |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| Video Compression | H.265+, H.265, H.264+, H.264 |
| Recording Resolution | Up to 8MP |
| HDMI Output | Up to 4K (4096 × 2160 @30Hz) |
| VGA Output | Up to 1080p |
| Video Output | HDMI & VGA Simultaneous |
| Audio Output | 1 × RCA |
| Two-Way Audio | Yes |
| Synchronous Playback | 16 Channels |
| HDD Interface | 1 × SATA |
| Maximum HDD Capacity | Up to 8TB |
| Network Interface | 1 × Gigabit RJ45 (10/100/1000 Mbps) |
| USB Ports | 2 × USB 2.0 |
| Remote Connections | Up to 32 Users |
| Power Supply | 12V DC, 1.5A |
| Power Consumption | ≤10W (Without HDD) |
| Operating Temperature | -10°C to +55°C |
| Dimensions | 315 × 240 × 48 mm |
| Weight | ≤1 kg (Without HDD) |
Smart Features
DS-7616NI-Q1 includes intelligent monitoring capabilities that improve surveillance efficiency.
- Motion Detection 2.0
- Human & Vehicle Classification (Up to 4 channels)
- Smart Search
- Smart Playback
- Event Recording
- Remote Monitoring via Hik-Connect
- ONVIF Compatibility
Storage & Performance
The Hikvision DS-7616NI-Q1 offers excellent recording performance with efficient storage management.
- Supports up to 16 IP cameras
- Records up to 8MP resolution
- 160 Mbps incoming bandwidth
- 16-channel simultaneous playback
- 1 SATA hard drive interface
- Supports up to 8TB surveillance HDD
- H.265+ compression reduces storage usage and bandwidth requirements significantly.
Why Choose Hikvision DS-7616NI-Q1?
- Supports up to 16 IP cameras
- 4K HDMI video output
- Efficient H.265+ compression
- Reliable Gigabit network connectivity
- Smart human and vehicle detection
- Easy remote access with Hik-Connect
- Cost-effective solution for professional surveillance
- Trusted Hikvision quality
Frequently Asked Questions (FAQs)
How many IP cameras can the Hikvision DS-7616NI-Q1 support?
It supports up to 16 IP cameras.
What is the maximum recording resolution?
The NVR supports recording at up to 8MP resolution.
How much storage does it support?
It has one SATA interface that supports a hard drive of up to 8TB capacity.
Does it support 4K display?
Yes. The HDMI output supports 4K (4096 × 2160) resolution.
Does it support AI features?
Yes. It supports Motion Detection 2.0 with Human and Vehicle Classification on up to four channels.
