Hikvision DS-7108HGHI-M1/T

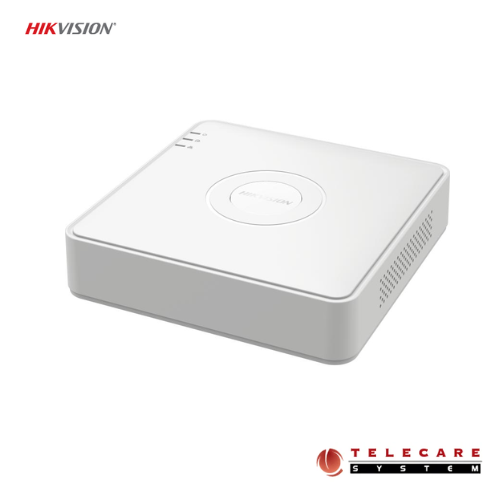

Hikvision DS-7108HGHI-M1/T — 8-Channel 1080p Lite Mini 1U Turbo HD DVR

Hikvision DS-7108HGHI-M1/T is a compact, value-series 8-channel Turbo HD Digital Video Recorder from Hikvision’s Value product line. Designed for small to medium-sized surveillance installations — such as retail stores, offices, residences, and warehouses — this mini 1U DVR delivers reliable HD recording with advanced smart detection features at an accessible price point. Its true 5-in-1 hybrid capability allows it to work seamlessly with HD-TVI, AHD, HDCVI, CVBS, and IP cameras, offering installers and end-users maximum flexibility when designing or expanding a security system. The DS-7108HGHI-M1/T is the ideal choice when you need professional-grade recording and smart analytics without the cost of a premium-series unit.

• 5-in-1 Hybrid Compatibility — The DVR supports HDTVI, AHD, HDCVI, CVBS, and IP cameras on a single platform. This means you are never locked into a single camera technology. You can mix and match camera brands and types, reuse existing coaxial infrastructure, or gradually migrate to IP cameras — all without replacing the recorder. With 8 BNC analog inputs plus 2 native IP channels (expandable up to 10 IP channels total by substituting analog channels), the DS-7108HGHI-M1/T provides genuine hybrid versatility.

• H.265 Pro+ Compression — Leveraging Hikvision’s advanced H.265 Pro+ encoding technology (along with H.265 Pro, H.265, H.264+, and H.264), the DVR dramatically reduces bitrates and storage consumption by up to 75% compared to standard H.264. This means you can store significantly more recorded footage on the same hard drive — a critical advantage for systems running 24/7 continuous recording.

• 1080p Lite Recording & Full HD Playback — The DVR supports a maximum input resolution of 1080p Lite across all analog channels, delivering crisp 2-megapixel-equivalent image quality with reduced bandwidth requirements. Both the HDMI and VGA outputs support simultaneous display at up to 1920 × 1080 @ 60 Hz, ensuring smooth, flicker-free live viewing and playback on your monitor or TV.

• Motion Detection 2.0 with AI-Based Classification — Unlike basic motion detection that triggers on any movement (including swaying trees, rain, or animals), the DS-7108HGHI-M1/T uses deep learning-based Motion Detection 2.0 to intelligently classify targets as humans or vehicles. This significantly reduces false alarms and ensures that you are only alerted to events that truly matter. Smart search by object or event type allows for rapid retrieval of relevant footage during playback.

• Two-Way Audio over Coaxial — Supporting audio over coaxial (AoC) technology, the DVR enables two-way audio communication through compatible HDTVI cameras using the same RG59 coaxial cable that carries the video signal. This eliminates the need for separate audio cabling, simplifying installation and reducing material costs. The unit features 1-channel RCA audio input, 1-channel RCA audio output, and supports bidirectional audio with input reuse.

• Pentaplex Operation — The DS-7108HGHI-M1/T supports full pentaplex operation — live view, recording, playback, backup, and remote access can all function simultaneously without any degradation in performance. This ensures that system administrators and security personnel can review footage or back up evidence without interrupting ongoing recording.

• Remote Access via Hik-Connect — Using the free Hik-Connect smartphone app (iOS and Android), users can view live feeds, play back recorded footage, and receive push notifications for motion events from anywhere in the world. The DVR also supports access via web browser and the iVMS-4200 PC client software for more advanced management.

Hikvision DS-7108HGHI-M1/T Technical Specifications

Ideal Applications

• Small Retail & Convenience Stores — Monitor entrances, cash registers, and stock rooms with up to 8 HD cameras. The AI-based human and vehicle detection filters out false alarms from passing traffic or stray animals, so store owners only receive meaningful alerts. Compact form factor fits easily under a counter or on a shelf.

• Residential & Home Security — Protect your home with a professional-grade surveillance system at a budget-friendly price. The Hik-Connect app lets you check on your property from anywhere, receive instant notifications, and communicate through two-way audio via compatible cameras.

• Small Offices & Workspaces — Cover reception areas, meeting rooms, corridors, and server rooms. The pentaplex operation ensures that recording is never interrupted, even during playback or backup. Remote management via iVMS-4200 allows IT staff to maintain the system without on-site visits.

• Warehouses & Storage Facilities — With vehicle detection capabilities, the DVR can trigger alerts when trucks or delivery vehicles enter loading zones. The 4 TB storage capacity supports weeks of continuous recording at lower resolutions.

What’s in the Box

• DS-7108HGHI-M1/T DVR unit
• 12 V DC power adapter
• USB mouse
• CD with user manual and software tools
• Quick installation guide

Why Choose DS-7108HGHI-M1/T?

Hikvision DS-7108HGHI-M1/T stands out in the value DVR segment by offering AI-powered Motion Detection 2.0 — a feature traditionally reserved for higher-end recorders — at a highly competitive price. Its 5-in-1 hybrid input capability means you are never constrained to a single camera protocol, and the inclusion of H.265 Pro+ compression ensures that storage costs stay minimal. The compact mini 1U white chassis is discreet enough for residential and retail environments, while the professional feature set — including pentaplex operation, Hik-Connect remote access, and two-way audio — meets the demands of commercial installations. For installers and system integrators looking for a reliable, feature-rich DVR that balances capability and cost, the DS-7108HGHI-M1/T is an excellent choice.
