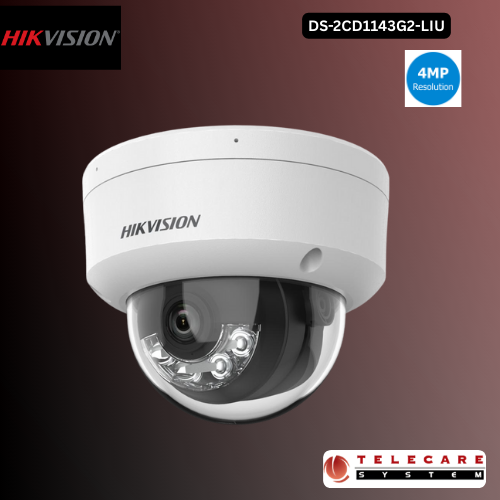

Hikvision DS-2CD1143G2-LIU 4MP Smart Hybrid Light Fixed Dome Network Camera
Hikvision DS-2CD1143G2-LIU is a powerful 4MP Smart Hybrid Light Fixed Dome Network Camera designed to provide outstanding image quality for residential, commercial, and industrial surveillance. Featuring a 1/3-inch Progressive Scan CMOS sensor, the camera delivers crystal-clear video at a maximum resolution of 2560 × 1440.
Equipped with Smart Hybrid Light technology, the camera intelligently switches between infrared and white light to provide clear images in complete darkness while reducing unnecessary light pollution. Built-in human and vehicle detection enhances security by minimizing false alarms, while the integrated microphone enables real-time audio recording. Advanced H.265+ compression reduces bandwidth and storage requirements without sacrificing image quality.
The DS-2CD1143G2-LIU supports Power over Ethernet (PoE) for simplified installation and features an IP67 weatherproof and IK08 vandal-resistant housing, making it ideal for both indoor and outdoor applications. It is fully compatible with Hik-Connect, ONVIF, and iVMS-4200 for convenient remote monitoring and management.
Hikvision DS-2CD1143G2-LIU Specifications
| Specification | Details |
|---|---|
| Model | Hikvision DS-2CD1143G2-LIU |
| Camera Type | Smart Hybrid Light Fixed Dome Network Camera |
| Image Sensor | 1/3″ Progressive Scan CMOS |
| Maximum Resolution | 2560 × 1440 (4MP) |
| Effective Pixels | 4 Megapixels |
| Lens Options | 2.8mm / 4mm Fixed Lens |
| Aperture | F1.6 |
| Viewing Angle | 98° (2.8mm), 78° (4mm) |
| Minimum Illumination | Color: 0.005 Lux @ F1.6, 0 Lux with IR |
| Day & Night | IR Cut Filter |
| Supplement Light | Smart Hybrid Light (IR + White Light) |
| Light Range | Up to 30m |
| Built-in Microphone | Yes |
| Intelligent Features | Human & Vehicle Detection |
| Video Compression | H.265+, H.265, H.264+, H.264, MJPEG |
| Audio Compression | G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC |
| Image Enhancement | 120dB WDR, 3D DNR, BLC, HLC |
| Network Interface | 1 × RJ45 10/100 Mbps Ethernet |
| Storage | Supports microSD Card up to 512GB (model dependent) |
| Network Protocols | TCP/IP, HTTP, HTTPS, RTSP, RTP, DHCP, DNS, NTP, IPv4, IPv6, SMTP, FTP |
| Power Supply | 12V DC ±25% / PoE (IEEE 802.3af Class 3) |
| Power Consumption | Max. 7.5W (PoE), Max. 6W (12V DC) |
| Protection Rating | IP67 Weatherproof, IK08 Vandal Resistant |
| Housing Material | Metal & Plastic |
| Operating Temperature | -30°C to +60°C |
| Dimensions | Ø121.4 × 97.7 mm |
| Weight | Approx. 550g |
Applications
- Home Security
- Office Buildings
- Retail Stores
- Shopping Malls
- Warehouses
- Schools & Universities
- Hospitals
- Banks
- Parking Areas
- Industrial Facilities
Package Contents
- 1 × Hikvision DS-2CD1143G2-LIU Network Dome Camera
- Mounting Accessories
- Quick Installation Guide
Warranty
- Official Brand Warranty (Subject to supplier policy)
